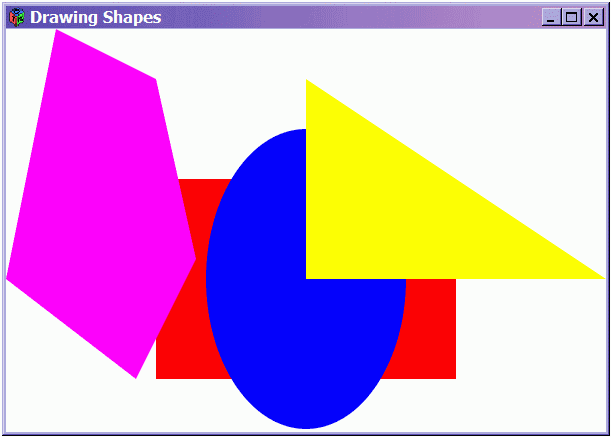

In Chapter 2 a shape data type and a function for computing the area of shapes were defined. In the last chapter you learned about basic graphics programming in Haskell. In this chapter I will define another function of shapes, namely one that converts a shape into a graphics value that can then be drawn in a graphics window. Conceptually, this function is no different from the area function defined in Chapter 2. In both cases, a shape is turned into some other kind of value; in the case of area, that value has type Float, and in the case of the function to be defined in this chapter, that value has type Graphic.

In order to perform graphics IO, we need to import the graphics library, as discussed in the last chapter. Additionally, we need to import the Shape module. Calling our new module Draw, we therefore write:

module Draw ( inchToPixel, pixelToInch, intToFloat,
              xWin, yWin, trans, shapeToGraphic, spaceClose
            ) where

import Shape
import SOEGraphics

Before proceeding, let's define a couple of coercion functions that we will use to convert, or "coerce," the coordinates of a graphics window into ones that we are more familiar with (and vice versa).

In our discussions of shapes, we have always assumed floating-point numbers for all dimensions, presumably in inches or some similar dimensional units. But the Graphics Library uses pixel coordinates, so first we need a function to convert from the former to the latter. Let's assume that the floating-point numbers are in inches, and that there are 100 pixels per inch. Thus, to convert from inches to pixel coordinates, we can apply the following function:

inchToPixel :: Float -> Int
inchToPixel x = round (100 * x)

Also, recall from the previous chapter that the point (0, 0) marks the upper left-hand corner of a graphics window. If we define some global names for our window size (in pixel coordinates):

xWin, yWin :: Int
xWin = 600
yWin = 500

Unfortunately, this graphics window coordinate system is not the same as the one most of us are familiar with. Normally, we would expect (0, 0) to be in the center of the screen, increasing x to move to the right, and increasing y to move upward. So let's define another coercion function that translates “our” coordinates into those required by the graphics window:

trans  :: Vertex -> Point
trans (x, y) = (xWin2 + inchToPixel x, yWin2 - inchToPixel y)
xWin2, yWin2 :: Int
xWin2  = xWin `div` 2
yWin2  = yWin `div` 2
